3-Axis CNC Machining: How It Works, Pros, Cons and Uses

3-axis CNC machining is the most common process for cutting metal and plastic parts on CNC milling machines. A cutting tool moves along three straight axes and shapes a solid block into a finished part, often with high precision. It is key to modern manufacturing.

This guide is for engineers, product designers and buyers in many industries. It explains how 3-axis machining works, its advantages and limits, its many applications, and how it compares with 4-axis and 5-axis machining.

What Is 3-Axis CNC Machining?

3-axis CNC machining is a subtractive process. A cutting tool moves along three linear axes to remove material from a workpiece that stays fixed on the machine table or in a vise. A servo motor and a ball screw drive each axis, and an encoder feeds the position back to the controller.

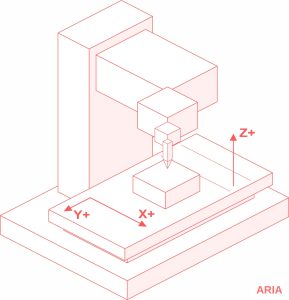

X-axis: Moves the tool left and right (horizontal). On a typical vertical machining center, the table slides along X.

Y-axis: Moves the tool forward and backward (depth). Together with X, it places features across the top face.

Z-axis: Moves the tool up and down (vertical). It sets the depth of cut. On a typical vertical machining center, the spindle head moves along Z.

The X, Y and Z axes sit at right angles to each other. The spindle spins the cutting tool but does not tilt, so it is not counted as an axis. With no rotary axis, the tool always cuts from above. This makes 3-axis machining a versatile fit for flat and prismatic shapes. It struggles with complex geometries and cannot cut features under an overhang.

How 3-Axis CNC Machining Works

Workpiece Setup

Every job starts with a solid block of material, clamped on the machine table or held in a vise. The programmer sets a work zero, so the program knows where the workpiece sits. Good clamping protects accuracy and keeps the process safe.

Tool Loading

The spindle is loaded with the right cutting tool. Many machines keep several tools in a tool magazine, which enables automatic tool changes during the job. This saves setup time and makes the process more efficient.

Milling and Cutting on CNC Milling Machines

The controller runs the program, usually G-code, and drives the spinning tool along the X, Y and Z coordinates. Rough cuts use larger tools to remove bulk material first. Finishing cuts use smaller tools to bring the part to final size and shape.

Repositioning and Multiple Setups

The tool reaches only one side of the part at a time. An operator may need to flip the part or re-fixture it to machine the other faces.

Advantages of 3-Axis CNC Machining

Cost-Effective: A 3-axis machine typically costs $25,000 to $50,000, while a 5-axis machine can cost $80,000 to $500,000 or more, so the machine rate is lower. A standard vise is often enough, and a part that finishes in a single setup usually has the lowest cost per part and the best efficiency. That saves money.

Easy Programming: Toolpaths are simpler and standard CAM software is enough, so programming is faster. Operators need less training and expertise than in 4-axis or 5-axis machining.

High Precision: Standard 3-axis machining holds tight tolerances of ±0.005 in (±0.13 mm). Precision work reaches ±0.001 in (±0.025 mm) on a rigid setup. Aluminum and brass hold tighter tolerances than steel, stainless steel and exotic materials such as titanium. Features cut in one setup stay aligned on the same part, and flat surfaces stay flat.

Versatile Applications: It suits flat faces, pockets, slots, drilling and threading in metals and plastic, from prototyping simple parts to production runs of housings and other components.

Disadvantages of 3-Axis CNC Machining

Limited Access: The tool reaches only the top face of the part. To machine another face, the part must be taken out and turned over.

Multiple Setups: Complex parts with features on multiple sides need multiple setups and repeated re-clamping. Each setup adds setup time and labor, and every re-clamp carries a risk of human error and small alignment errors that add up across faces. Once a part needs more than two or three setups, 4-axis or 5-axis machining may cost less overall.

Undercuts and Deep Cavities: A straight tool cannot reach a feature under an overhang. T-slot, dovetail and lollipop cutters reach some undercuts. Deep pockets and holes deeper than about four times their diameter are a challenge, because long tools bend under cutting force and lose accuracy.

Workarounds: A rotary add-on lets a 3-axis machine run 3+1 or 3+2 machining. Complex parts with angled features usually move to 4-axis or 5-axis machining.

Applications of 3-Axis CNC Machining

Common Operations in 3-Axis Machining

Facing and profiling: Facing flattens the top of the stock. Profiling cuts the outer shape and chamfers the edges.

Pocketing and slotting: End mills cut recesses, slots and stepped profiles at different depths.

Drilling and tapping: Makes holes at positions set by X and Y, then cuts threads in them.

Typical Parts

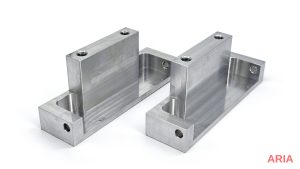

Plates and brackets: Flat plates with pockets and holes, and mounting parts with simple profiles.

Housings and enclosures: Open-top boxes with internal features.

Flanges and covers: Flat parts with hole patterns. One test: if every feature is accessible from the top, 3-axis machining can produce the part.

Industries

Automotive and aerospace: Brackets, housings and structural fittings.

Electronics: Enclosures and heat sinks.

Medical and industrial equipment: Instrument housings, fixtures and machine components.

3-Axis vs. 4-Axis vs. 5-Axis CNC Machining

Axis Movement and Angled Features

3-axis: Linear motion in X, Y and Z only. One face is reachable per setup.

4-axis: Adds rotation around one axis. In 3+1 indexing, the part rotates and locks before cutting. In simultaneous machining, the rotary axis moves while the tool cuts.

5-axis: Adds a second rotary axis. In 3+2 mode, the tilt is set and locked first. In simultaneous machining, all five axes move together, which suits complex parts.

Fewer Setups and Programming Effort

3-axis: Simple fixtures and programming, but more setups on multi-sided parts.

4-axis: Needs a rotary table or indexer. Programming is moderate.

5-axis: Needs fewer setups, which improves alignment between faces. Advanced technologies and programming add complexity.

Cost and Lead Time for Complex Parts

3-axis: Lowest machine rate, but the highest setup cost on complex multi-face parts.

4-axis: Middle cost. A good fit for cylindrical parts and parts with features on several sides.

5-axis: Highest machine rate, but often the lowest setup cost, because many parts finish in a single setup.

Compare total cost per part, not the hourly rate alone. The table below sums up the main differences.
