Why put up with returns, delays, and shipping mistakes that give you a headache? They disrupt production schedules, damage client relationships, and cost you money.

Aria’s stringent quality assurance procedures guarantee that you’ll always get the parts you ordered.

ISO 9001:2015, ROHS, REACH
Quality Reports
Tolerances down to ±0.0004″ (0.01mm)
Quality Assurance

Manufacturing Standard of
CNC Machining

LINEAR DIMENSION

Limits for nominal size

F (fine)

M (medium)

C(coarse)

V(very coarse)

0.5 up to 3

±0.05

±0.1

±0.2

Over 3 up to 6

±0.05

±0.1

±0.3

±0.5

Over 6 up to 30

±0.1

±0.2

±0.5

±1.0

Over 30 up to 120

±0.15

±0.3

±0.8

±1.5

Over 120 up to 400

±0.2

±0.5

±1.2

±2.5

Over 400 up to 1000

±0.3

±0.8

±2.0

±4.0

Over 1000 up to 2000

±0.5

±1.2

±3.0

±6.0

Over 2000 up to 4000

±2.0

±4.0

±8.0

ANGULAR DIMENSIONS

Limits for nominal size

F (fine)

M (medium)

C(coarse)

V(very coarse)

up to 10

±1º

±1º

±1º30′

±3º

Over 10 up to 50

±0º30′

±0º30′

±1º

±2º

Over 50 up to 120

±0º20′

±0º20′

±0º30′

±1º

Over 120 up to 400

±0º10′

±0º10′

±0º15′

±0º30′

Over 400

±0º5′

±0º5′

±0º10′

±0º20′

Quality Control Measures

ABS resin is a milky white solid with a certain degree of toughness, with a density of about 1.04~1.06 g/cm3. It has strong corrosion resistance to acids, alkalis, and salts, and it can also tolerate organic solvents to a certain extent. ABS is a resin that has good mechanical toughness, wide temperature range, good dimensional stability, chemical resistance, electrical insulation properties and it’s easy to manufacturing.

PMMA, also known as acrylic, is a tough, highly transparent material with excellent resistance to ultraviolet radiation and weather resistance. It can be colored, shaped, cut, drilled and shaped. With its beautiful appearance, it has a wide range of applications in the construction industry.

High-density polyethylene (HDPE) is a white powder or granular product. Non-toxic and odorless, the use temperature can reach 100℃. It does not have the impact strength of LDPE, but it is more elastic. Surface hardness, tensile strength, rigidity and other mechanical strength are higher than LDPE, close to PP, tougher than PP, but the surface finish is not as good as PP.

Nylon 6, also known as PA6, polyamide 6, is a polymer compound. Except for its low melting point and wide process temperature range, its chemical and physical properties are very similar to nylon 66. Among all nylon grades, nylon 6 has the lowest modulus.

Peek polyetheretherketone is a kind of special engineering plastic with high temperature resistance, self-lubrication, easy processing and high mechanical strength and other excellent properties. It can be manufactured and processed into various mechanical parts, such as automobile gears, oil screen, gear shift start plate;  Aircraft engine parts, automatic washing machine runner, medical equipment parts, etc.

Polycarbonate is a high molecular weight polymer containing carbonate groups in the molecular chain. It is a tough thermoplastic resin with flame retardancy. Antioxidant. It has excellent impact strength, transparency and optical properties, mechanical properties, and can be molded to tight tolerances. PC has a wide range of applications, and there are a variety of compounds to choose from.

Polypropylene is a silver-white transition metal with a density of 4.5g/cm3. The main features are low density, high mechanical strength, easy processing, and good corrosion resistance.

Polyethylene terephthalate (PET), milky white or light yellow, is a highly crystalline polymer with a smooth and shiny surface. It is non-toxic, tasteless, and has good hygiene and safety, and can be directly used for food packaging. It has excellent physical and mechanical properties in a wide temperature range, and the long-term use temperature can reach 120°C. But it is difficult to mold to very close tolerances.

Words Tab
ABS Materials

Preproduction assessment

Our quality control preproduction assessment includes technical and material verification. Our experts evaluate the choice of material, parts structure, and production process. We assess potential risks and determine whether the requirements are achievable during the initial development phase.

  • Common applications: Enclosures
PMMA/Acrylic materials

Inbound inspection

Verifies that the material is consistent with a production schedule. Material certification is available upon request. It provides detailed information about the grade, heat number, chemical composition, dimensions, and material properties.

  • Common applications: Enclosures
HDPE(High Density Polyethylene) Materials

In-process quality control

In-process quality control is performed by Aria in compliance with our ISO9001:2015 program. First article inspection is a routine inspection that is completed at the production line every two hours.

  • Common applications: Enclosures
HDPE(High Density Polyethylene) Materials

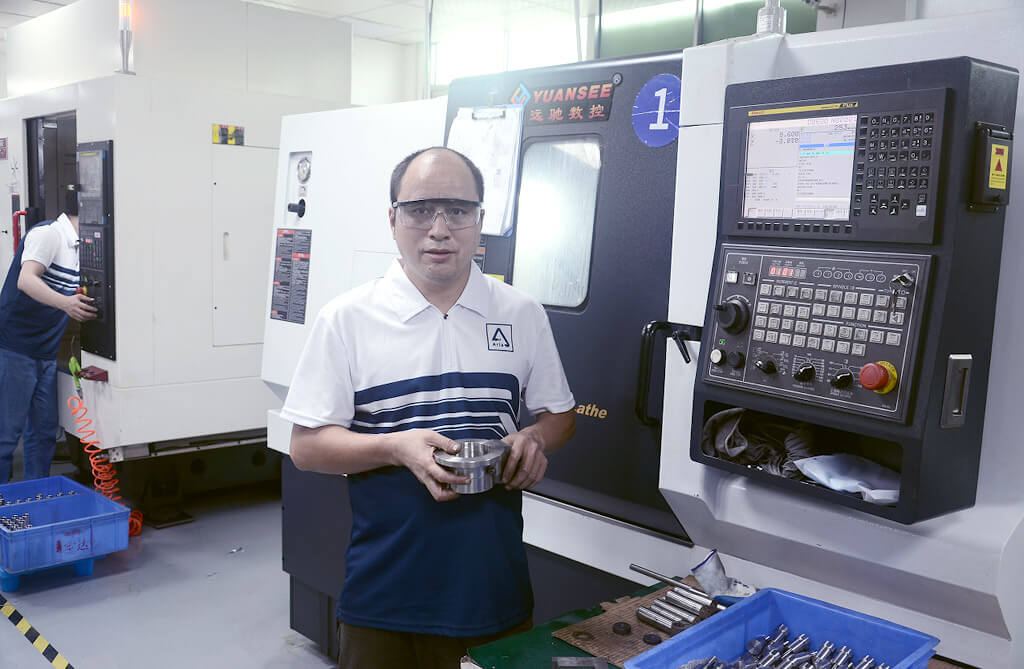

First article inspection

Before an injection molding project moves into production, a first article inspection is carried out. First article inspections are also available for CNC machining projects upon request. The first article inspection process includes an in-depth examination accompanied by images of the parts.

  • Common applications: Enclosures
PEEK Materials

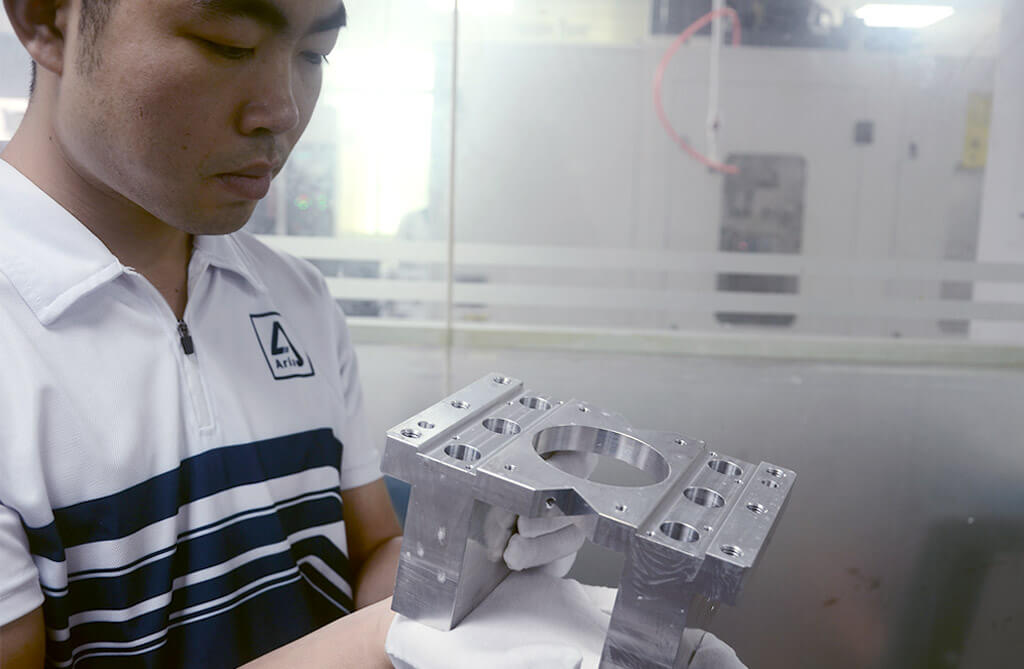

Outbound inspection process

Includes a dimensional report and a certificate of proper packaging. Inspection reports are performed upon request. They provide a detailed analysis of the parts quantity, critical dimensions, depth, thickness, tolerance, thread, and other essential qualifiers. We guarantee that all parts are packed to prevent damage during transit.

  • Common applications: Enclosures
PC Materials

PC(Polycarbonate)

Polycarbonate is a high molecular weight polymer containing carbonate groups in the molecular chain. It is a tough thermoplastic resin with flame retardancy. Antioxidant. It has excellent impact strength, transparency, and optical properties, mechanical properties, and can be molded to tight tolerances. PC has a wide range of applications, and there are a variety of compounds to choose from.

  • Common applications: Enclosures
PP Materials

PP(Polypropylene)

Polypropylene is a silvery-white transition metal with a density of 4.5g/cm3. The main features are low density, high mechanical strength, easy processing, and good corrosion resistance.

  • Common applications: Enclosures
PET Materials

PET

Polyethylene terephthalate (PET), milky white or light yellow, is a highly crystalline polymer with a smooth and shiny surface. It is non-toxic, tasteless, and has good hygiene and safety, and can be directly used for food packaging. It has excellent physical and mechanical properties in a wide temperature range, and the long-term use temperature can reach 120°C. But it is difficult to mold to very close tolerances.

  • Common applications: Enclosures

Quality Reports

Certificate of Conformance icon 01

Certificate of Conformance

Aria will issue a certificate of conformance that an order has been shipped according to the required specification. Quality reports are available for injection molding, die-casting, stamping, and CNC machining processes.

injection molding materials

Material Certificates

Material certificates verify the chemical composition of raw materials purchased by Aria. This document is generated by the materials supplier and is available with stamping, die-casting, CNC machining, and injection molding manufacturing.

Dimensional Report icon 03

Dimensional Report

Dimensional reports furnish information about the essential dimensions of parts. These parts are randomly chosen from the production area and are inspected and checked with respect to allowed tolerances.

RoHS icon 04

RoHS
Report

RoHS reports verify that no hazardous substances are used in the material or any of its finished products. The report is available with CNC machining and injection molding manufacturing processes.

Parts Verification

Parts Verification Program

Our parts verification program is a standard procedure with injection molding projects and is best described as an upgraded first article inspection. It’s available for CNC machining projects that surpass the minimum individual part quantity of 100 units.

This program provides for two sets of parts to be shipped to the customer for testing. Upon approval, the project will proceed to production. A design change is easily accomplished at this stage by submitting a modified drawing to us. If the changes are extensive, the modification will increase the price.

Inspection Equipment

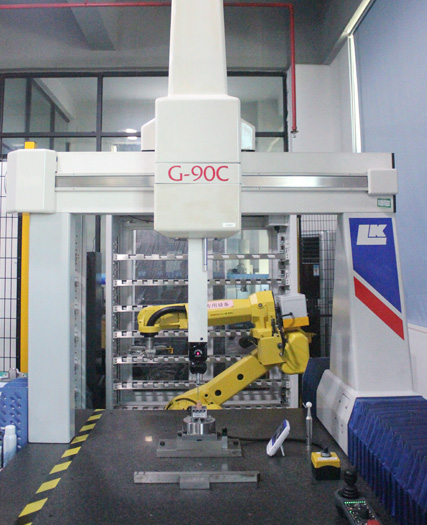

Aria uses coordinate measuring machines to make molding and to verify the dimensions of produced parts. Coordinate measuring machines to capture an object’s series point and determine the object’s dimensions. Coordinate measuring machines are an ideal fit for complex geometries.

The projector is also called an optical comparator. Using an illumination light, it provides a magnified image of a part to measure that part’s dimensions. The image can be compared with the original CAD drawing. The projector is highly effective with smaller components.

Using X-ray fluorescence, a non-harmful analytical technique, we can determine the composition of a material. X-ray fluorescence uses short-wave X-rays or gamma rays to perform qualitative and quantitative analyses of a material’s composition.

inspection

Resolving Quality Issues

The team at Aria is committed to impeccable standards and exceptional quality. If you receive an order that doesn’t meet specification, contact us immediately at [email protected]
