EUAn aircraft is built from hundreds of thousands of individual parts. Each one has to fit, perform and survive conditions few other products face: extreme temperature swings, constant vibration, pressure changes and decades of service life. CNC machining produces a large share of these parts, from engine components to interior brackets. This guide covers what aerospace CNC machining involves, which parts it produces, the processes and materials behind them, and what buyers should look for in a machining partner.

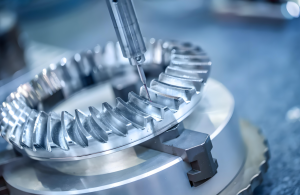

What Is Aerospace CNC Machining?
Aerospace CNC machining uses computer controlled equipment—short for computer numerical control—to cut metal, plastic or composite stock into finished aircraft and spacecraft components. A CAD model becomes machine instructions, and a cutting tool removes material from a solid block or bar until the final shape is reached. This is subtractive manufacturing. Material comes off, not on. That combination of process control and high precision is what makes it suitable for aerospace components and other highly precise components with demanding performance requirements.
The word “aerospace” changes the standard considerably. A bracket for a consumer product might carry a tolerance of a few tenths of a millimetre with nobody noticing a drift. An aerospace bracket in the same load class often needs tolerances as tight as ±0.002 mm, full material traceability, and documentation covering every step of production. The geometry might be identical to something built for another industry. The paperwork and repeatability rarely are.
Why Precision Matters: The Role of CNC Machining for Aerospace
Precision in aerospace is not a marketing term. CNC machining plays a crucial role in the aviation industry by producing high precision components that must perform exactly as designed. A turbine blade out of tolerance by a fraction of a millimetre can throw off the balance of an entire engine stage. A landing gear pin with a rough finish becomes a fatigue crack starting point after enough load cycles. A structural fitting slightly undersized can fail well before its designed service life.
Most CNC machined aerospace parts sit inside systems where failure is not an option: engines, flight controls, landing gear, pressure vessels. Aircraft also operate in extreme conditions, from decades of cabin pressurisation cycles to engine heat that would soften ordinary steel. Regulators such as the FAA and EASA require traceability back to raw material certification, and aerospace machining must meet strict safety standards and manufacturing standards to prevent structural failures, so a part without a clean paper trail cannot go on an aircraft regardless of how it measures.
Precision also supports interchangeability. Airlines need spare parts that install without rework anywhere in the world, which depends on a process that produces the same result on the thousandth part as the first and helps maintain optimal performance in service.
Key Aerospace CNC Machined Parts and Aircraft Components
An aircraft can be broken into a few broad part categories, and different aerospace applications call for different kinds of parts and process demands. Many of these are complex components and critical parts, each asking something different of the manufacturing process, from freeform engine surfaces to load bearing structures to lightweight cabin fittings.
Turbine Blades and Engine Components
Turbine blades carry twisted aerofoil surfaces machined to a tight profile tolerance along their full length, and as critical engine parts produced through engine components cnc machining for jet engines, they demand extremely stable process control. Cooling channels are sometimes drilled directly into the blade body. Any deviation in curvature changes airflow and engine efficiency.
Nickel based superalloys such as Inconel are chosen for strength at high temperature, but they resist cutting. They work harden quickly, generate heat at the cutting edge, and wear tools down fast, so shops machining such materials need specialized tooling because nickel superalloys resist cutting. Producing a single blade can need several tool changes and careful control of cutting speed to avoid burning the surface or leaving residual stress that shortens fatigue life. Engine housings, casings and shafts carry similar material demands with less complex geometry than the blades themselves, and CNC machining is also used for producing turbine blades and engine casings. PEEK is also used as a high-performance polymer in certain critical engine parts.
Structural Aircraft Components
Wing ribs, spars, fuselage frames and landing gear structures carry the physical loads of flight: lift, turbulence, landing impact. They are usually machined from aluminium or titanium billet, two common aerospace materials for structural metal components, with aluminum alloys commonly used for wing ribs, spars, and fuselage frames, and several aluminum alloys selected depending on strength and fatigue requirements; billet machining can remove very large amounts of stock, with waste ratios that can exceed 90%, to leave a lightweight skeleton.
Landing gear parts and landing gear components face the heaviest loads. A single landing can put tens of tonnes through a strut in a fraction of a second. These components are almost always high strength steel or titanium, machined to tight geometric tolerances with close attention to surface finish, since a scratch or tool mark can become a stress riser under repeated impact.
Aircraft Interiors
Seat tracks, brackets, mounts, trim fittings, and other interior components live inside the cabin. Loads here are lower, but weight and appearance take priority. Every kilogram saved in the cabin adds up in fuel efficiency over the aircraft’s life, so interior parts often use aluminium or high performance polymers such as PEEK and ULTEM rather than steel.
Finish quality matters too. A seat track bracket needs a clean, consistent surface because passengers and crew interact with it directly, and any sharp edge or burr becomes a safety concern during inspection. CNC machining also produces electrical connectors and similar small cabin or cockpit fittings where accuracy and finish matter.
Commercial Aircraft vs. Military/Space Applications
Commercial aviation runs on production volume and cost discipline. In the aerospace sector, a part for a narrow body airliner might be produced in batches of hundreds or thousands, with cost per part under constant pressure.
Military and space applications flip that priority, especially in military aviation as well as orbital programs. Volumes are often small, sometimes single digit, and the part has to survive conditions beyond normal flight: extreme acceleration, vacuum, radiation, combat loads. Tolerances can be tighter, material certification stricter, and the acceptable price per part much higher. That is why shops are often asked to produce satellite components in low volumes with unusually demanding specifications.
CNC Machining Processes Used in Aerospace CNC Machining
Different part geometries call for different machining approaches. Most aerospace shops run several CNC processes on computer controlled machines side by side, moving a part between them as needed.
Advanced automation helps streamline this work, but finding skilled CNC operators remains a major challenge in aerospace machining.

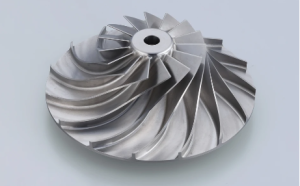

5-Axis CNC Machining
A 3-axis mill moves a cutting tool along X, Y and Z. A 5-axis machine is a form of high precision CNC machining that adds two rotational axes, letting the tool reach complex aerospace components from almost any angle without repositioning it. For a flat bracket, this adds little. For a turbine blade or impeller with a continuously curved surface and complex geometries, it is the difference between a workable process and an impossible one.
Fewer setups mean fewer chances for positioning error between operations. Cutting tools can stay closer to perpendicular to the surface, improving finish quality and tool life. Deep pockets, undercuts and compound angles that would need custom fixturing on a 3-axis machine often become straightforward on a 5-axis one, which is why 5-axis CNC equipment is used to produce complex engine and structural components with fewer setups, giving aerospace designers access to intricate surfaces while reducing repositioning errors.

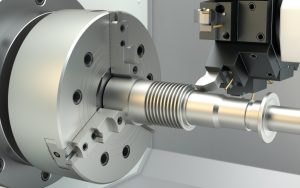

Precision CNC Turning
Turning covers round parts: shafts, pins, bushings, fasteners, fittings with rotational symmetry. The stock spins on a lathe while a stationary tool removes material to form the profile. Aerospace turning often combines tight diameter tolerances with demanding surface finishes, since many turned parts sit in bearing or sealing interfaces where clearance is measured in microns.
Swiss style turning machines are common for smaller fasteners and pins produced in higher volumes, supporting long, thin parts with good accuracy and less material waste than machining from solid bar on a standard lathe.
CNC Grinding and Surface Finishing
Grinding uses an abrasive wheel to remove very small amounts of material, refining a surface to a finer finish or tighter tolerance without disturbing the underlying geometry. This step shows up on bearing races, shafts, gear teeth and any component where friction or wear resistance depends on surface quality.
Grinding is usually the last dimensional operation before inspection or coating, since it corrects any residual deviation left by earlier machining steps.
Hybrid Manufacturing
Additive manufacturing has moved into limited aerospace production, particularly for parts with internal lattice structures or geometry that would waste material if machined from solid stock. Hybrid manufacturing combines both: a part is built up with 3D printing, then finished on a CNC machine to bring critical surfaces, bores and mating features to aerospace tolerances.
A bracket with a weight reduced internal structure can be printed near net shape and machined only where precision matters, rather than cut entirely from a solid block. This approach remains limited to qualified applications rather than a general replacement for conventional machining, but it is growing in engine and space hardware, and as those methods mature in qualified aerospace use, sustainable manufacturing practices will likely be prioritized.
Materials Used in Precision CNC Machining in Aerospace
Material choice for aerospace applications often starts with advanced materials, then comes down to strength to weight ratio, fatigue resistance, temperature tolerance and corrosion resistance. Cost matters too, but rarely at the expense of these four.
Aluminium alloys remain the workhorse of the industry and a cost-effective choice for many applications. Grade 6061 balances strength, machinability and cost for general structural parts. 7075 gives higher strength for wing and fuselage components. 2024 is chosen where fatigue resistance matters most, such as fuselage skins.
Titanium alloys, especially Ti-6Al-4V, sit above aluminium in strength and temperature capability while staying lighter than steel. Titanium also shares a thermal expansion rate close to some carbon fibre composites, which makes it a natural pairing material at metal to composite joints. The trade off is machinability, since titanium heats quickly at the cutting edge and needs careful tool and coolant selection.
Nickel based superalloys such as Inconel 718 handle the hottest parts of an engine. High performance polymers like PEEK and ULTEM appear in interiors and select engine adjacent parts. Carbon fiber composites make up about 50% of the Boeing 787’s structure, though they are usually machined mainly for trimming and drilling.
Challenges in Aerospace CNC Machined Parts Production
A machined aerospace part rarely fails because of one obvious mistake. It usually fails through small issues stacking up: a tool path generating too much heat, a fixture letting a thin walled part flex during cutting, a tolerance stack that looked fine on paper but ignores how two parts actually mate.
Difficult materials sit at the centre of most problems. Many aerospace materials are difficult to cut, especially titanium and nickel superalloys, which resist cutting, wear tools quickly and can develop residual stress if machined too aggressively. Thin walled structural parts, common in weight reduced airframe components, are prone to vibration and distortion, which means slower feed rates and more careful fixturing than a bulkier part with the same shape would need.
Tolerance stacking across an assembly is another recurring issue. A single part might sit well within spec, but several such parts bolted together can add up into a misalignment that only shows during final assembly or during aircraft assembly, not just in isolated part inspection. Designers who specify GD&T datums carefully avoid much of this before machining starts.
Quality Control and Certification in Aerospace CNC Machining
Aerospace quality control starts with the raw material certificate and continues through every operation. Coordinate measuring machines and laser scanning confirm dimensional accuracy. Non destructive testing, including dye penetrant and ultrasonic inspection, checks for internal defects a surface measurement would miss.
AS9100 certification is the baseline expectation for most aerospace machining work and the common quality benchmark across the global aerospace industry. It builds on ISO 9001 with added requirements around traceability, risk management and configuration control specific to aviation. Many aerospace buyers will not qualify a supplier without it.
First article inspection is standard for new part numbers. Before a full production run begins, a sample part is measured against every drawing dimension and the results are documented, catching process issues before a batch of nonconforming parts gets produced.
Cost Factors in CNC Machining Aerospace Parts
Aerospace machining costs more than general industrial machining for structural reasons, especially when manufacturing costs are shaped by difficult materials and process demands. Titanium and nickel alloys cost far more per kilogram than aluminium or steel, and they machine more slowly, adding machine time on top of material price.
Part complexity drives cost through setup time, tooling and cycle time. A part needing five setups on a 3-axis machine might need one on a 5-axis machine, though the 5-axis machine costs more to run per hour. Tight tolerances mean slower feed rates and more in process inspection. Even when aerospace materials are expensive, CNC machining can still reduce manufacturing costs versus other methods by lowering tooling, waste, and setup expenses.
Volume changes the equation again. A part ordered in the thousands can spread custom fixturing and tool path optimisation across many pieces. A part ordered in single digits, common in military and space programmes, carries the full cost of programming and setup on very few units, which is why low volume aerospace parts often cost much more per unit than their commercial equivalents.
Applications of Aerospace CNC Machining
Beyond individual part categories, CNC machining supports the aerospace industry across its full product life cycle. During development, aerospace prototypes let engineers test form, fit and function in the same material the final part will use, which additive prototyping cannot always match since printed and machined material properties differ.
In production, CNC machining scales from single digit runs for satellites and defence programmes up to the higher volumes needed for commercial airliner fleets, producing aerospace components across prototypes, production and MRO, including high volume production when consistency and repeatability matter. It also manufactures avionics housings for aircraft systems. Maintenance, repair and overhaul work relies on machining too, since replacement parts for aircraft already in service, such as those matched to older drawings exactly, often need to meet legacy specifications.
Space applications add another layer of demand. Rocket engine components, propulsion systems, satellite structures and payload fittings need to survive vacuum, radiation and extreme thermal cycling, often in parts too specialised to justify tooling for any process other than machining from solid stock.
Choosing the Right Partner for Aerospace CNC Machining
AS9100 certification should be the starting point of any evaluation, not an optional extra. Beyond that, look at the materials a shop actually runs in production rather than a website list. A supplier with real precision machining experience in titanium and Inconel will have tooling strategies a general purpose shop has not developed.
Ask about inspection capability directly: CMM access, surface finish measurement, non destructive testing, and whether these happen in house or get outsourced. A long inspection supply chain adds lead time and risk. Traceability matters just as much, especially when supporting consistent production of highly precise components for aerospace applications, with every material batch linked back to its mill certificate and every process step documented well enough to support an audit years later. Experienced suppliers also support aerospace companies and aerospace manufacturers with an engineering team that can flag tolerance, geometry, and material risks before production begins.
Communication rounds out the picture. A good aerospace machining partner flags a tolerance or geometry problem before cutting begins, not after.
