Lead screws might be small and not noticed by many, but they are actually a very important part of different processes in different industries. They change rotational movement into linear movement, making them a big part of a mechanism such as linear actuators, screw jacks, and other precision-driven systems. Their simple structure, cheap usage, and the possibility to produce a high force with low torque make them the solution to many applications in countless fields.
What is a Lead Screw?

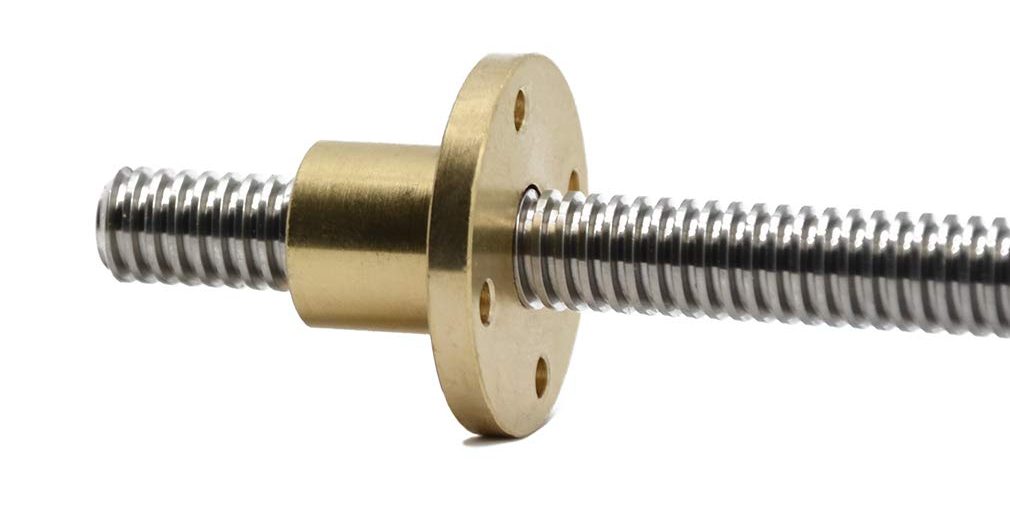

A lead screw or a power screw is a mechanical system that converts rotary motion to linear motion. This is done through the threads of the lead screw, which engage in a corresponding nut to achieve precise motion in a single direction while considering the torque required .
Lead screws are also often used in applications that need a fairly uncomplicated and inexpensive means of generating linear motion, including actuators, linear stages, and motion control systems.
Although easily mistaken for threaded rods, lead screws differ in that their coarser threads resist deformation under load. This capability allows them to support more loads and offer more efficiency in some applications.
How Does a Lead Screw Work?
The principle behind a lead screw is to transfer rotational motion to linear motion. When a lead screw is rotated, the screw’s threads lock onto the matching threads in the nut, causing the nut to move linearly along the screw.
The pitch (thread distance apart) and the lead (how far the nut travels with each revolution) control the linear speed and efficiency of the system. The lead angle, or the angle between the axis of the lead screw and its threads, has a strong impact on how much force is created axially when operating.
When the lead screw turns, the nut travels linearly, which can be used to operate mechanisms such as linear actuators or screw jacks.
Lead Screw Design: Key Considerations
The lead screw design is important for its efficiency and performance. There are many factors that play a part in the end product, including the screw lead, thread angle, nut type, and material choice. Let us discuss these design aspects:
Screw Lead and Pitch
The lead indicates the amount of travel the nut undergoes with each revolution of the screw. The greater the lead, the more rapid the motion, but perhaps the less load the screw can efficiently convey. The smaller the lead, the finer the control and the greater the loads, but at the expense of speed.
Thread Angle
Thread angle is the angle between the threads and the screw axis. The smaller thread angle brings greater efficiency and smoother motion, but is not effective for heavy loads. Greater thread angles, like Acme thread angles, have greater strength but greater friction and less efficiency.
Nut Design
The nut, which works together with the screw, has to fit perfectly into the screw threads. It is usually made from brass, plastic, or steel, based on the application. Various designs of nuts are used to minimize wear and friction and maximize the lead screw’s operational life.
Material Selection
Lead screws are made from sturdy materials such as carbon steel, stainless steel, or aluminum, based on the requirements of the application. Material selection determines durability, resistance to friction, and cost-effectiveness.
Types of Lead Screw Threads
There are many different types of lead screw threads, each intended for use with a variety of load types and offering distinct advantages based on the application. Let’s discuss the most important ones:
V-thread
The V-thread is perhaps the oldest and most basic thread form. The thread angle most commonly used is 30°, and it offers an intermediate balance between efficiency and strength. Although V-threads have some benefits in manufacturing ease and economy, they usually exhibit greater friction than other threads.
Square Thread
Square thread is known for its high efficiency and low friction. With a 0° thread angle, square threads are especially suitable for applications that demand a small amount of backlash and smooth movement. Square threads are more complicated and costly to produce, as well as they wear out faster in heavy-load conditions.
Acme Thread
Acme threads are among the most popular varieties of lead screw threads and are frequently used in heavy-duty applications. The 29° thread angle provides a strength versus efficiency trade-off and offers high load capacity with moderate efficiency. The threads are frequently applied where very high durability is required, as in machinery and industrial automation.
Buttress Thread
Buttress threads resemble Acme threads but are made to deal with unidirectional loads. These are loads in just one direction. They are often used in situations wherein the lead screw is exposed to pressure in a single direction, like in clamping devices.
Advantages and Disadvantages of Lead Screws
As with any mechanical part, lead screws have advantages and disadvantages. Here are the two:
Advantages
Simplicity: Designing and making lead screws is easy compared to other complex mechanisms, such as ball screws.
Cost-Effective: They are less costly compared to other options, meaning they are perfect for use in situations where finances are limited.
Load Carrying: Lead screws are capable of carrying high axial loads, and they are perfect for use in industrial systems where there is a need for strong and heavy-duty parts.
Flexibility: Being made in different materials and types of threads, lead screws can be used for many different applications.
Disadvantages
Efficiency: Lead screws are usually less efficient than ball screws since the friction is greater due to the sliding contact between the threads and the nut.
Wear and Tear: The leadscrew produces friction, which wears down lead screws faster than ball screws due to regular maintenance and lubrication.
Backlash: Backlash is sometimes caused by the movement of the nut and screw, particularly in applications where precision is an essential requirement.

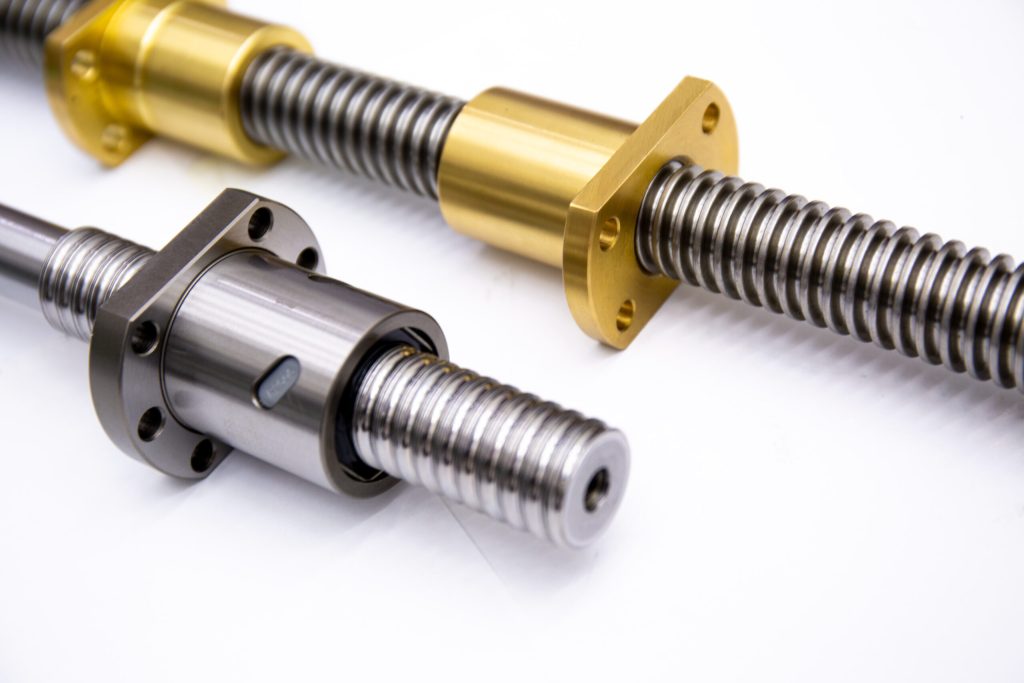

The Difference Between a Lead Screw and a Ball Screw
In choosing between a ball screw and a lead screw, the choice usually rests on such considerations as precision, load, and efficiency.

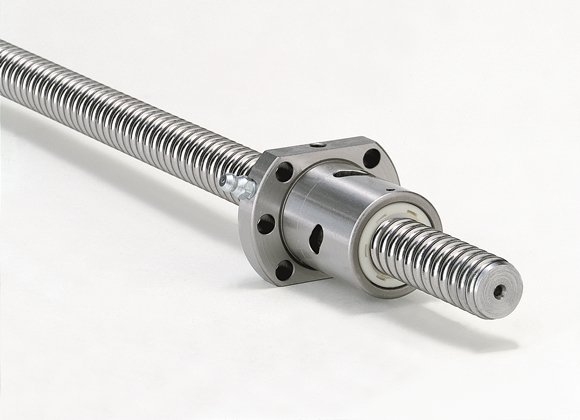

Ball screws use a recirculating ball bearing mechanism that minimizes friction and maximizes efficiency. Ball screws are more accurate and longer lasting, but are more costly and normally used where high precision is required.
On the other hand, lead screws are uncomplicated, less expensive, and more appropriate for use in applications where performance is not the most important aspect. They are the best fit for systems that need moderate accuracy and handling of heavy loads, but do not necessitate the same quality of performance as ball screws.
Power Transmission in Lead Screws
Lead screws are a huge part of power transmission within mechanical systems, as they allow the conversion of rotary to linear motion. The efficiency and structure of a lead screw have a direct effect on the amount of force that is transmitted and the overall performance of the system.
There are a number of factors that influence the power transmission ability of a lead screw:
Pitch and Lead: The lead specifies the amount of linear motion the nut travels with each revolution of the screw, and the pitch specifies the distance between successive threads. A higher lead will provide quicker nut movement but less mechanical advantage. On the other hand, a lower lead will have slower movement but increased force transmission.
Thread Angle: A lower thread angle (such as with square threads) will provide greater efficiency but is less suitable for heavier duty. Higher angles (e.g., the Acme thread’s 29°) make the lead screw stronger but decrease its efficiency.
Material Selection: Lead screws are usually built using high-strength materials like carbon steel, stainless steel, or aluminum. Material selection has an influence on the performance of the lead screw under load and how long it will endure normal usage. Stronger materials are better for high-load and heavy-duty applications.
Lead screws are extensively applied for linear motion in screw jacks and actuators where high forces are to be transferred through a relatively compact structure. They find applications in machines requiring rotary-to-linear motion conversion, including CNC machines, 3D printers, and automated systems.
Applications of Lead Screws
Lead screws are versatile and have uses in a number of industries. Some of the most frequent industries where lead screws are used are:
1. Industrial Automation
In industrial automation, lead screws are used in systems demanding accurate linear motion, for example, conveyor belts, robotic arms, and machine automation. Lead screws offer effective motion control and are simple to add to an existing system without much expense.
2. Medical Devices
Lead screws also play a huge role in the medical field, where they are used in equipment like patient lifts, surgical devices, and prosthetics. In these uses, the lead screw has to be very reliable as well as strong enough to transmit considerable force uninterruptedly.
3. Aerospace
In aerospace engineering, lead screw-powered actuators operate everything from satellite positioning systems to landing gears. The capacity of lead screws to function under hostile environments, including extreme pressures and temperatures, makes them suitable for such stringent applications.
4. Machine Tools
Lead screws are widely applied in machine tools for linear motion. They can be in the motion of cutting tooling or positioning systems, lead screws provide a tried and tested means for translating rotary motion into linear motion with high accuracy.
Lead Screw Maintenance and Lubrication
Maintenance should be done regularly to maintain lead screws at their best level. Since lead screws function through sliding contact of the nut with the threads, friction is unavoidable. Friction has the potential to wear out and reduce efficiency if left uncontrolled.
Lubrication
Lubrication of the lead screw and nut reduces friction so that they move more smoothly and minimizes the wear on both parts. Grease or oil-based lubricants are often applied, but the lubricant used will vary with the particular application and the conditions. For example, with high-speed applications, a thin lubricant may be used to provide smooth motion, but with high-load applications, a heavier lubricant may be required to be more effective in reducing friction.
Regular Inspection
Regular inspection is very important for long-term operation. Worn-out signs such as backlash, higher friction, or noise may be a pointer that the lead screw is losing effectiveness. Examination of the nut, screw threads, and lubrication system helps in revealing possible problems before they cause malfunction.
Debris Removal
Debris will also pile up on the lead screw in many cases, especially in industrial environments. Regular cleaning will prevent foreign particles from affecting the movement or contributing to additional wear. In high-precision applications, very small volumes of dust can present real problems, so it is important to keep the system free of dust.
How to Select the Right Power Screw for Your Application
Selecting the appropriate power screw for your system is based on various factors, which involve the desired performance, load requirements, efficiency, and budget. Below are some factors to consider for guiding your selection:
1. Load Requirements
The first thing to do when choosing the appropriate screw is to determine the load your system will have to support. Lead screws can take moderate to heavy loads easily, but if your system must have very high precision and low backlash, a ball screw may be what you need to look into. If the loads are heavy but precision is not as important, lead screws are a good option.
2. Desired Efficiency
If efficiency is a major concern, then lead screws will not be the best solution in all cases, since they do have more friction than ball screws. However, if the application does not need high speeds and is willing to accept some friction, lead screws are a cost-saving solution.
3. Application Speed
The necessary speed of operation will also determine which screw is most suitable for your purposes. Lead screws are usually more appropriate for lower-speed applications than ball screws, but you can select a lead screw with a greater lead to add speed at the expense of efficiency.
4. Environmental Factors
Keep in mind that the operating conditions, like temperature, humidity, and dust, can impact the screw’s functionality. For instance, lead screws used in hot environments might require special material construction, such as stainless steel, to prevent degradation.
5. Maintenance Requirements
Lead screws need regular maintenance to make sure of proper performance, including lubrication and cleaning. If ease of maintenance is a key concern for your application, it is worth considering the maintenance schedule you can adhere to before selecting the screw type.
Final Words
Lead screws are important parts of machines that create a reliable and inexpensive way to convert rotary movement to linear movement. For instance, they can come in different thread types, with various design considerations and applications, allowing them to provide versatile solutions to different industries like industrial automation, medical devices, and aerospace.
Although lead screws are less efficient compared to ball screws, they are used in situations where moderate precision, heavy load, and cost-effectiveness are required. Part of the regular maintenance that makes sure that the lead screws will serve for a long time is lubrication, which is a must. Besides, knowing the right factors in selecting the proper lead screw is very important in getting the desired results.
Lead screws will still be part of the motion technology that will provide new solutions to different industries as they keep advancing in time.
