So, you have a project that involves metal forming. You might be examining a flat piece of sheet metal and saying, “How do I make this into something useful?”
It’s a common question to consider when it comes to metal fabrication. Two terms you’ll hear thrown around a lot are sheet metal stamping and metal punching.
At first glance, they sound the same, right? Both involve operating a press machine and transforming a sheet of metal. But honestly, they are quite different. Think of stamping and punching as two different tools in your tool chest, good for different tasks.
Understanding the whole metal stamping vs punching conversation is super important. It will save you time, money, and a lot of heartache in the long run.
In the next few minutes of this post, we’ll walk you through everything, making it all crystal clear.

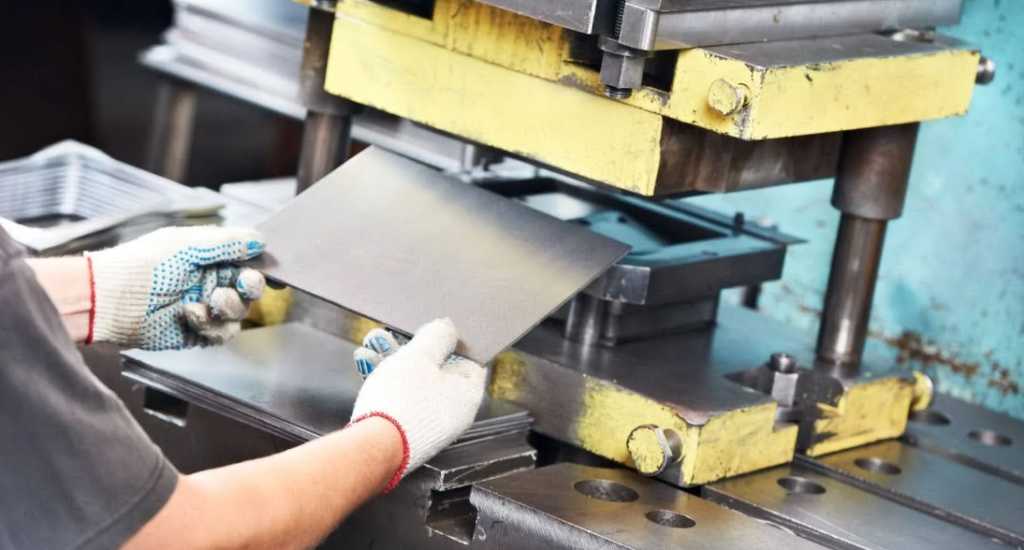

What is Metal Stamping?
Let’s start with Metal Stamping. I want you to imagine a lump of Play-Doh and a cookie cutter. When you take the cookie cutter and press it into the dough, you are not simply cutting a donut hole; you’re giving it a specific shape.
Sheet metal stamping is pretty similar, except more advanced and powerful. Stamping is an example of a cold-forming process. This means we shape the material without heating it.
The main objective of stamping is to shape a flat sheet of material into a three-dimensional part, and we are not looking to remove material. Stuffing up the stamping, we transform a flat sheet of material into a 3-D part.
The stamping process uses a powerful press machine with a tooling die that shapes, stretches and bends the material without breaking it.
We’re talking about things like car door panels, kitchen sink models, or the metal casing for your phone. To reiterate, stamping encompasses a wide range of forming operations to achieve the final desired shape.
How Does It Work?
Let’s start with Metal Stamping. I want you to imagine a lump of Play-Doh and a cookie cutter. When you take the cookie cutter and press it into the dough, you are not simply cutting a donut hole; you’re giving it a specific shape.
Sheet metal stamping is pretty similar, except more advanced and powerful. Stamping is an example of a cold-forming process. This means we shape the material without heating it.
The main objective of stamping is to shape a flat sheet of material into a three-dimensional part, and we are not looking to remove material. Stuffing up the stamping, we transform a flat sheet of material into a 3-D part.
The stamping process uses a powerful press machine with a tooling die that shapes, stretches and bends the material without breaking it.
We’re talking about things like car door panels, kitchen sink models, or the metal casing for your phone. To reiterate, stamping encompasses a wide range of forming operations to achieve the final desired shape.
Advantages and Disadvantages of Metal Stamping
Just like anything else in life, there are good and bad things related to the process. So, let’s look at the things that are good about metal stamping, and the less good.
Pros
Fast and efficient
Excellent for complex shapes:
Low cost per part (at high volumes)
High repeatability:
Cons
High upfront tooling costs
Long lead times
Not suitable for low-volume projects
What is Metal Punching?
Now, let’s jump ship to talk about metal punching. If stamping is like using a cookie cutter to make a shape, then punching is like using a hole puncher on a piece of paper.
Punching should be considered the process of punching holes in a piece of sheet metal. Like stamping, it is a shearing process, where material is cut and removed from the sheet of metal.
When you need to create a part with a series of holes, slots, or a specific profile, punching sheet metal is typically the method of choice. A punch press, which is a machine, has a punch and die that shear the metal.
The piece of metal that is ejected is referred to as a slug. While holes are where it is at, punching versus other methods can also produce openings that follow the outer profile of the part.
How Does it Work?
The process is pretty simple. You have a punching machine – a type of press that grips the punch tool (the cutting portion) and die (which supports the metal and has a hole for the punch to puncture the material). This is referred to as a punch and die set.
The sheet metal is placed in the die (the punch sits in the press) so that the punch is pressed against the sheet metal and forced through the metal with extreme speed and force. The press shears away the piece of metal, leaving a clean hole. The force required to punch a hole in the sheet depends on the type of metal and the thickness of the sheet.
Modern shops usually utilize CNC (Computer Numerical Control) punching machines. CNC is a computer-controlled system that manages the movements of the sheet metal and punch tool, allowing for very precise styles of holes and patterns to be punched and manufactured in an automated fashion.
These processes are accomplished with automatic CNC controls, allowing for the entire operation to be extremely accurate. A punch can be a simple round shape or a custom-made one for more complicated openings.
Advantages and Disadvantages of Metal Punching
There are both advantages and disadvantages to metal punching. Let’s get into them.
Pros
Cheaper tools
Faster for prototypes and low volumes
Great for simple shapes
Flexibility with CNC
Cons
Slower for high volumes
Limited to 2D shapes
Possibility of burrs
Metal Punching vs Stamping: 7 Differences
So, we’ve looked at them one at a time. But the real question is whether to punch or stamp. We need to put stamping and punching next to each other to really understand the argument about them. Let’s look at the seven main differences that make these two great metal forming methods different from each other.
1. Primary Function: Creating Holes vs. Forming Shapes
This is the most important difference. The whole point of punching metal is to make holes. It’s a process that cuts away material. You use a punch to push a piece of metal out of the sheet.
However, metal stamping is a method for shaping metal. The primary goal is to alter the shape of the metal sheet without requiring the removal of any material (although some stamping operations do involve trimming). To give the metal piece a new shape without breaking it, you have to bend, stretch, and press it. So, when people talk about metal stamping vs. punching, one is about making shapes, and the other is about making holes.
2. Tooling Complexity and Cost
The tools and equipment needed are very different. The tools are very important for punching and stamping metal. A punch tool for a punching machine is not very complicated. The punch and die set is less complicated, which makes it cheaper. It also has a standard shape and size.
On the other hand, stamping dies are very complicated and made just for that one metal part. They often have complicated shapes and features, which makes designing and building them very costly and time-consuming. One of the biggest differences between stamping and metal punching is the cost of the tools.
3. Design Freedom and Part Complexity
This goes back to what they were made to do. With metal stamping, you can design anything you want. You can make parts with deep draws, curves, and complicated 3D shapes.
It’s one of the few metal forming processes that can make something like a car fender quickly and easily. You can stamp parts made of materials that are 10mm or even thicker into these shapes with stamping capabilities.
Metal punching is more limited, though it is accurate. It’s great for making flat pieces with complex patterns of holes or slots. CNC punching can make some very complicated 2D designs, but it can’t make the 3D shapes that stamping can. Whether your design is flat or three-dimensional is often what decides whether to punch or stamp it.
4. Production Speed and Volume
It all depends on the volume when it comes to speed. Metal stamping is an efficient method for producing a large quantity of items simultaneously. Once the press is in operation, it can stamp parts at an impressive speed in one hit or through a progressive die.
Metal punching is often faster to get started, particularly for low to medium volumes or when making prototypes. You don’t have to wait long for complicated tools. You can program and run a CNC punching machine in a short amount of time, making it ideal for producing parts quickly, although not in large quantities. The operations are performed one after the other, which can slow down the process on very large runs.
5. Material Waste
Both processes generate waste, but they do so in different ways. Waste is an unavoidable byproduct of the metal punching process. When you punch a hole, you make a piece of scrap metal.
The goal of metal stamping is often to use up the whole blank of metal. But the amount of material left over after cutting the part from the original sheet or coil can be large, depending on the shape of the part. Smartly arranging parts on the sheet can help with this, but the conversation about the cost of metal punching vs. stamping waste is an important one.
6. Material Thickness and Type
Both methods can be used with a wide range of metals, but there are some notable differences. The thickness of the sheet is very important. Stamping can often work with thicker materials because it shapes them, rather than cutting through the entire piece at once. You can find metal sheets that are only a few millimeters thick, all the way up to much thicker plates.
Punching is also very flexible, but it can be hard to do when you have to punch through very thick or hard materials. The punch press’s power and the punch tool’s strength are two factors that limit its capabilities. It’s an important part of the evaluation of metal stamping vs. punching.
7. Cost-effectiveness for different production runs
This is where you need to really figure out the numbers for your project.
For small runs, prototypes, or one-off pieces, metal punching is almost always the more cost-effective option. It is the clear winner because it is cheap to make and easy to set up.
Metal stamping is the best way to make a lot of parts (thousands to millions). The high initial cost of the tools is spread out over so many pieces that the cost per piece is very low, much lower than punching.
To make the right choice about manufacturing, you need to know these important differences between stamping and punching.
Sheet Metal Stamping vs Punching: Which One is Right for You?
So, based on everything we’ve covered, how do you decide? This decision relies on four things: complexity, volume, budget, and time. The debate of Metal Stamping vs Punching is determined on a part-by-part basis.
Use metal punching if:
Your primary requirement is to create holes in sheet metal, such as slots or vents.
You are fabricating a flat part or one that has a simple shape.
You have low – medium production volume.
You need fast part turnaround for a prototype or a small batch.
Your tool budget is limited.
Use metal stamping if:
You need to create a 3D part with complex shapes, curves, or drawings.
You are planning for a very high-volume production run.
Lowest cost-per-part is your highest priority for your project.
You need extremely high consistency and precision for millions of parts.
You have the time and budget to commit to the initial investment in stamping dies.
Sometimes, maybe, a project needs both! A part may be stamped to shape, and holes added by a separate punching operation. The combination of metal punching and metal stamping is common in the sheet metal fabrication industry.
FAQs
Q: What is the main difference between stamping and punching?
A: Stamping shapes flat metal sheets using dies in a metal pressing process, while punching’s primary function is to create holes by removing material.
Q: Which process is better for large quantities?
A: Stamping is superior for mass production. Its high-speed, automated process makes it the most cost-effective choice for producing thousands or millions of identical parts.
Q: Are stamping and punching the only options?
A: No, they are two key metal forming processes realized in manufacturing. A third metal process like laser cutting might be better for intricate, low-volume jobs.
Conclusion
Well, there you have it. The great debate of Metal Stamping vs Punching isn’t as scary as it might seem, right? These two methods are not rivals in the industry; they are partners in the amazing world of sheet metal fabrication.
Metal punching is your resourceful and affordable expert for making holes and simple flat parts, especially for smaller jobs.
On the other hand, Metal stamping is your robust source for forming complex 3D shapes, at production volumes that are only found in a stamping operation.
The main differences in function, cost and speed will help you decide between metal stamping and metal punching. None is a better method, just the right method for your project. By knowing about these metal forming methods, you can make smarter decisions, have better conversations with your fabricator, and, in the end, produce a better product.
