Have you ever looked at a technical drawing and been confused by all the strange boxes and symbols? You are not alone. These are part of a system called Geometric Dimensioning and Tolerancing, or GD&T for short.
Think of it as a universal language for designers, engineers and manufacturers. It ensures that a part designed in one country can be manufactured in another and still fit perfectly.
This guide will take you through the world of GD&T symbols, explaining what they mean and why they are so important.
We explain everything from the basic concepts to the detailed symbols you see on technical drawings. It’s all about making sure everyone is on the same page and that the parts work exactly as they should.
What is Geometric Dimensioning and Tolerancing (GD&T)?
So, what exactly is geometric dimensioning and tolerancing? At its core, it is a system of symbols and rules used on engineering drawings to define the geometry of a part.
It does not replace standard dimensions, but works in conjunction with them to give a more complete picture. It describes the ideal or nominal geometry of a part, but also specifies the permissible deviation from this geometry. This deviation is known as the tolerance.
With GD&T, a designer can clearly define the size, shape, orientation and position of a feature on a component. The system is centred on the function of a part and its interaction with other features and components.
To use it effectively, you really need to understand what the part does in the final assembly. That’s why GD&T is about communicating the design intent, not just the physical form. It’s a precise language that helps create functional and reliable products.
The Importance of GD&T in Manufacturing and Production
The use of GD&T in the manufacturing process is incredibly important. It is an indispensable tool that helps engineers to clearly communicate the tolerances of a design.
Because it is a standardised and precise language, it leads to consistent interpretation of drawings and removes the guesswork. When used correctly, GD&T can significantly reduce scrap, rework and production delays.
Here are some of the key benefits:
Ensures Accuracy:
A solid GD&T process ensures that all design requirements are met by clearly articulating them from the beginning. This ensures that the required geometric tolerance is achieved.
Supports digital design:
GD&T’s clear and simple data can be easily used in digital design systems such as 2D and 3D CAD software.
Provides consistency:
As a single, consistent language, GD&T eliminates ambiguity. Each dimension should ideally have only one interpretation, and GD&T helps to achieve this.
Reduces costs:
By allowing acceptable tolerances, GD&T can improve design accuracy while increasing manufacturing efficiency. Additional or extra tolerances are often granted, making the part less expensive to manufacture.
Improves communication:
Today’s complex designs require incredibly precise communication. GD&T helps designers, manufacturers and inspectors speak the same language, saving time and making the entire process more efficient.
How Does GD&T Work?

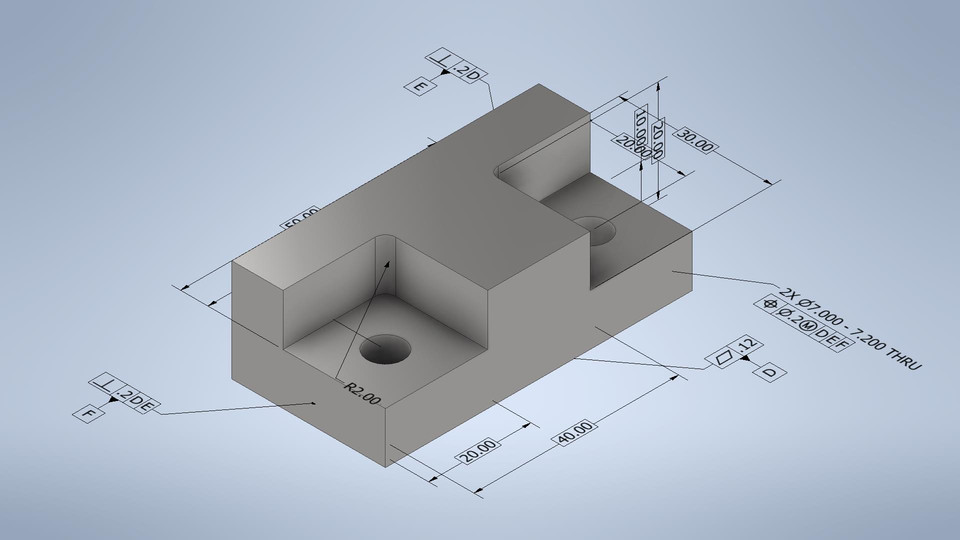

GD&T information is drawn directly into engineering drawings. These drawings must include dimensions for all aspects of a part. A tolerance value must be specified next to each dimension, with a minimum and a maximum permissible limit. The difference between these two limits is defined as a tolerance zone.
For example, imagine a table that must be between 750 mm and 780 mm high. The tolerance would be 30 mm. However, this simple tolerance could mean that one side is 750 mm and the other 780 mm high, or that the surface is wavy. To ensure a flat surface, we need a symbol that communicates this specific design intent. Therefore, a flatness tolerance would be added alongside the height tolerance.
Similarly, a cylinder could be within the diameter tolerance but be slightly bent so that it does not fit into the bore. This situation requires a straightness check that is difficult to represent with a simple plus-minus tolerance.
To fulfil this type of requirement, GD&T uses a library of symbols to communicate these specific geometric features. The basic idea is that each part has a basic size and shape and the tolerances define how much deviation is allowed. It also defines how the parts must align with each other to ensure that they fit and function correctly.
Different Types of GD&T Symbols
GD&T symbols are at the heart of the system. They are categorised according to what they control. The most important tolerance categories are form, profile, alignment, position and concentricity. Each geometric tolerance is applied to features using a special field called the feature control frame.
1. Form tolerances control
Form tolerances are used to control the shape of individual features and are not associated with datums.
Straightness: This refers to how straight a line element is on a surface. The tolerance for straightness of line elements defines the maximum deviation from a perfectly straight line.
Flatness: This controls how flat a surface is. The flatness tolerance is the maximum deviation from a perfect plane.
Roundness: This controls the roundness of a circular feature. It ensures that each cross-section of a feature lies within two concentric circles.
Cylindricity: This controls the roundness and straightness of a cylindrical surface along its entire length. The cylindricity tolerance is the maximum permissible deviation between the real and ideal cylinder.
2. Profile tolerances control
A profile tolerance defines a three-dimensional tolerance zone around a surface. It is a very powerful control that allows you to define the size, position, orientation and form of a feature all at once.
Line profile: This controls the shape of a line within a specific plane, which can be any form or curve. The tolerance of the line profile specifies the permissible deviation for this curve.
Profile of a surface: This controls the shape of an entire surface. The tolerance for the surface profile specifies how much the actual surface may deviate from its ideal shape.
3. Orientation tolerances control
Alignment controls define the relationship of features to each other, often at an angle. They always refer to a reference plane or axis.
Angularity: This controls the angle of a feature relative to a reference point. The tolerance zone is defined by two parallel planes with the specified angle.
Perpendicularity: This specifies that a feature must be at a perfect 90° angle to a reference point. The tolerance is the maximum permissible deviation from this 90° angle.
Parallelism: This ensures that a feature is parallel to a reference point. The tolerance applies to a zone that is defined by two parallel lines or planes that are a certain distance apart. It controls the axis parallelism for cylindrical features.
4. Location tolerances control
Position controls are used to define the intended position of a feature using linear dimensions.
Position: This is one of the most commonly used GD&T controls. It defines the exact position of features such as holes or slots. The position tolerance is the maximum permissible deviation from the ideal position.
Concentricity (coaxiality): This controls the relationship between the axes of two or more cylindrical features to ensure that they share a common axis. The tolerance is the permissible deviation of the measured axis from the reference point.
Symmetry: This ensures that two features on a part are symmetrical about a central plane or axis. The symmetry tolerance is the permissible deviation from this ideal symmetry.
5. Runout tolerances control
This tolerance controls how much a feature is allowed to vary when rotating around a reference axis. This type of tolerance is often used for parts that rotate.
Circular runout: This tolerance type controls the deviation of a surface when it is rotated 360° around the reference axis. It is measured on individual circular cross sections.
Total Runout: This is a more comprehensive check. It checks the deviation of the entire surface of the feature as it rotates around the reference axis. It checks both roundness and profile deviations over the entire surface.
Feature Control Frames in GD&T
A feature control frame is a rectangular frame that contains all GD&T information for a particular feature. It is the main tool for applying geometric control. It consists of several important parts:
Leader arrow: An arrow points from the frame to the feature to be checked. The arrow symbol draws attention.
Geometric symbol: The first compartment contains the symbol for the specific geometric tolerance being applied (e.g. flatness, position).
Tolerance zone information: The next part of the frame describes the shape and size of the tolerance zone. If the tolerance is a diameter, the diameter symbol (Ø) is displayed in front of the tolerance value. The tolerance value itself indicates the total permissible deviation.
Tolerance modifiers: Here, you may see symbols for things like material condition (e.g. Maximum Material Condition – MMC) or a projected tolerance zone. These give specific instructions on the tolerance.
Datun references: If the control requires a datum point, the letters for the datum points are listed in order of importance (primary, secondary, tertiary). The order of the reference points is decisive for how the part is measured. This creates the reference frame that serves as a coordinate system.
Application of GD&T in Practice
GD&T is frequently used in manufacturing and production. It helps the various departments to work together, as everyone is working towards the same goal and using the same language.
1. GD&T in the drawing
Technical drawings serve as a check to ensure that a supplier produces exactly what the customer has designed. If the tolerances are very tight, it is even more important to use GD&T.
For example, specifying that a cylinder must be “cylindrical” to an accuracy of 0.0003 is a much clearer instruction than a simple diameter tolerance.
2. GD&T in CNC machining
In CNC machining, parts can be produced to very tight tolerances because computers control the cutting tools with high precision.
To get the most out of this capability, it is important to use the right GD&T. It is used to set the dimensional tolerance for each part dimension and the position of features such as holes and slots.
This ensures that the finished part meets the design requirements and that the features are correctly aligned. It can also be used in conjunction with statistical process control (SPC) to reduce assembly errors.
3. GD&T in 3D printing
The use of GD&T in 3D printing is becoming increasingly popular as the technology advances. It allows for a more accurate representation of the final product, which is very helpful for complex parts.
As 3D printing is an additive process where parts are built up layer by layer, it is important that slight differences between each layer are taken into account.
The correct application of GD&T can prevent inaccuracies in the final product. Although tighter tolerances require more work in the design phase, they can save a lot of time and money during prototyping and production.
Conclusion
In short, Geometric Dimensioning and Tolerancing (GD&T) is an incredibly effective method of describing the dimensions and tolerances of a design.
It is a clear and universal language that communicates the functional requirements and design intent of a part. For mechanical engineers and designers, understanding these common symbols is essential.
If you want to ensure that the parts you design fit together perfectly and fulfil the task for which they were created, then GD&T is the system you need. It removes ambiguity, improves quality and ultimately helps to make better products.
