Custom
CNC Machining Services
Online CNC machining services for custom high-quality metal and plastic parts. Get a quote in minutes, and delivery in days.
Start A CNC Machined Parts Quote
Our CNC Machining Services
CNC machine all types of parts, from simple “as machined” workholdings to complex geometries. Our manufacturers operate almost every kind of CNC mill and turning center, with EDM and grinders available on request. We offer tolerances down to ±.020 mm (±.001 in) and lead times from 5 business days.
3 & 5 Axis CNC Milling
3-5 axis of CNC milling machines allow us to offer cheaper, more precise CNC milling services
CNC Turning
Arffer swiss lathes and multi-axis mill turns produce plastics & metal precise cylindrical parts
Electric Discharge Machining
Die-sinking EDM, wire EDM, and hole drilling EDM arie available, Fastest delivery time 3 working days

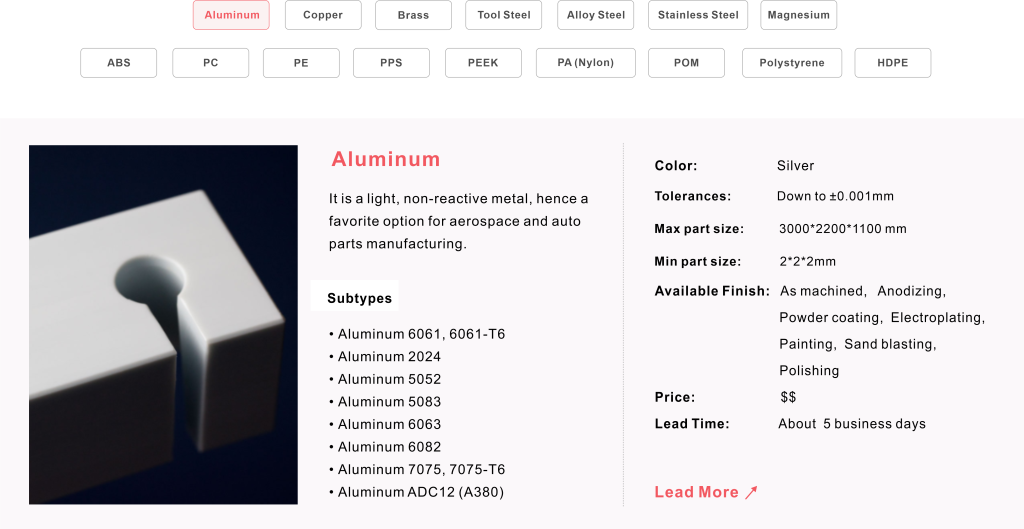

CNC Machining Materials
Online CNC machining services can deal with various materials, each having unique properties that make them well-suited for a broad range of materials.
CNC Machining Surface Finishes
We offer various finishes to make the surfaces glamorous and enhance the functionalities of workpieces. Let’s discuss the most common among them one by one;
As Machined
This machined finish is rough and shows tool marks. It is the simplest form of surface treatment. without additional finishing or polishing.
Anodizing
It creates a protective oxide coating on aluminum, enhancing corrosion resistance, hardness, and allowing for dyeing in various shades, thereby improving performance and appearance.
Polishing
It creates a smooth surface by removing flaws with abrasives, hence resulting in high gloss mirror finishes. Its major application is for aesthetic purposes while reducing friction.
Brushed Finish
This texture can be achieved by rubbing abrasive pads on the surface. It gives it a matt appearance with grain directionality.
Sandblasting
Sandblasting cleans surfaces by propelling high-speed particles, resulting in a dull matte finish that enhances grip and prepares CNC parts for further finishing.
Electropolish
This process involves removing a material layer from a metal surface by electrochemical means. It improves smoothness and corrosion resistance. It’s mostly used on stainless steel.
Alodine
Alodine finish for CNC machining involves applying a chromate conversion coating to aluminum, enhancing corrosion resistance and improving adhesion for subsequent coatings.
Heat Treatment
This is when you heat metals before cooling them to change their properties, such as strength, hardness, etc. Most of it deals with improving mechanical properties in metals.
Tumbling
Tumbling involves putting components into a rotary barrel containing grit media to smoothen and polish them. This technique is efficient in cleaning and deburring ( removal of burrs) components.
Powder Coating
Powder coating involves spraying a dry powder onto surfaces and heating it to form a hard, durable, and evenly colored finish.
Electroplating
Electroplating is a process that uses electrical current to deposit a metal layer onto a surface, enhancing its appearance, corrosion resistance, and wear properties.
Black Oxidize
Black oxide coatings give certain metals dark finishes. They are more resistant to mild oxidation forms often sought for visual-only purposes.
Why Choose Our Manfacturing Services
High-Quality Material
Aria offers a variety of materials for CNC machining, including metals, plastics, and composites. All raw materials are subjected to a thorough inspection to verify their exact chemical composition and hardness.
Save Cost
With three-axis CNC machining service cost starting at $10 per hour , our CNC milling services for prototype machining and production metal parts are remarkably cost-effective.
High Standard
With extensive material verification procedures and CNC testing processes, we can promise you that our products and services meet or exceed industry standards. Certificates of compliance are available upon request.
Quality Control
Aria performs quality control checks on all CNC parts before they are shipped to the customer, ensuring that they meet the required specifications.
CNC Machining Capabilites
Feature
Description
General Tolerances
Metals: +/- 0.005“(+/- 0.127 mm)
Plastics: +/- 0.010”(+/- 0.254 mm)
Precision Machining Tolerances
±0.0004″ (0.01mm)
Min Wall Thickness
0.5mm
Maximum Part Size
CNC Milling: 4000×1500×600 mm CNC Turning: 200×500 mm
Minimum Part Size
CNC Milling: 5×5 ×5 mm
CNC Turning: 2×2 mm
Surface Finish (As Machined)
125 Ra or better
Lead Time
3-5 Working Days
Aria Manufacturing
CNC Machining
Network
CNC machining is a subtractive manufacturing process that’s accomplished with the help of high-grade precision cutting tools and CNC Machines.
We use these implements to remove layers of raw material from a workpiece. The piece can then be recast into all manner of shapes and sizes to create a unique and custom cnc machining part or product.
With our own CNC workshop in Dongguan Changan, we have dozens of 3-axis, 4-axis and 5-axis CNC machines, and cooperate with other companies all over China.
In addition to CNC machines, we have grinding machines, wire-cutting machines and EDM machines that allow us to handle complex designs and produce precision parts with tolerances of 0.01mm.
Our automated production lines ensure high efficiency and fast delivery, helping us meet client demands while maintaining quality and accuracy.
Aria supply online cnc machining service, Get Your Free Quote About cnc machined parts Today.
All information and uploads are secure and confidential.
CNC Machining FAQS
CNC machining is a wide-ranging manufacturing category involving multiple computer-managed processes. The objective is to remove enough raw material from a piece to achieve a state of near completion.
Aria is a professional CNC machining manufacturer in China, The reliability and precision of high-tech tools powered by sophisticated software programs give CNC machining the ability to quickly generate prototypes and complicated end-use parts having exceptionally tight tolerances. with low cnc machining costs from Chinese.
CNC machining is a subtractive manufacturing process. When the material is added instead of removed, it’s called an additive manufacturing process. Examples of subtractive CNC machining include specialized applications such as CNC milling services, turning, surface grinding, and EDM. An example of additive CNC machining is 3D printing.
Computer-aided design (CAD) files are digital records containing 3D designs and information about materials, processes, tolerances, and other variables. A digitally controlled CNC machine must always contain a file of the part design that controls it.
The spinning motion from the CNC machine’s cutter will leave visible tool marks. Although they stand ready for immediate service, they can be further refined with anodizing, painting, polishing, and plating.
